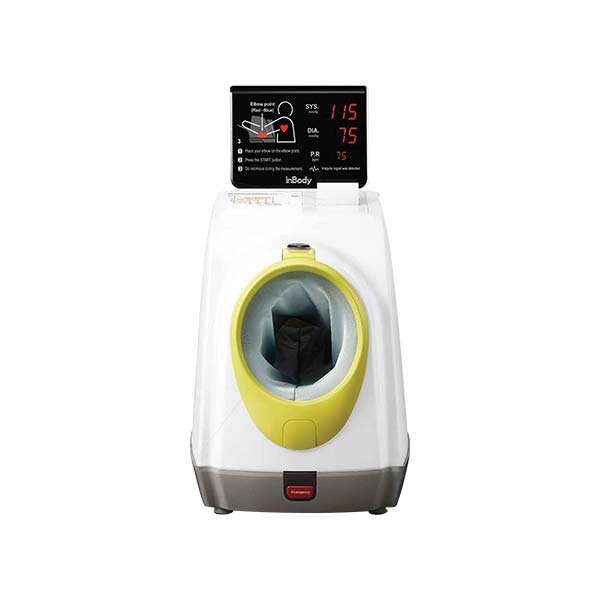

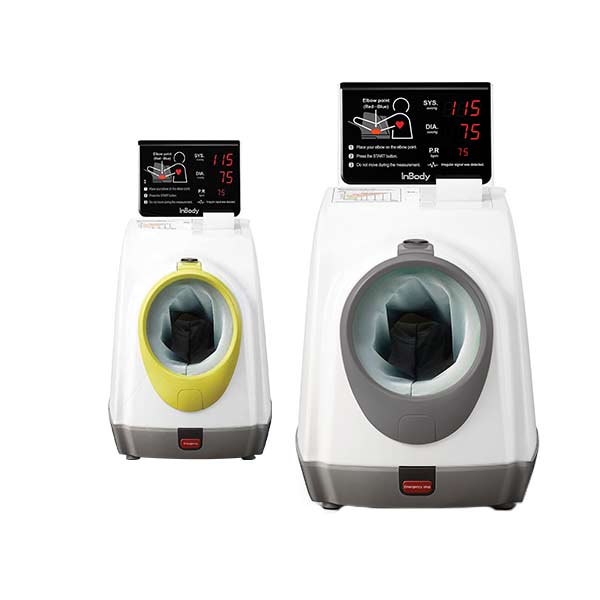

BPBIO750

BPBIO750 overcame the limitations of existing blood pressure monitors that are difficult to pose correctly through the moving cuff and moving elbow sensor.

Core Specifications

• Measurement Method: Oscillometric method
• Pressurization method: Automatic adjustment by air pressurization speed controller and micro pump Pressurization
• Decompression method: Automatic adjustment by air decompression speed controller and micro valve Decompression
• Exhaust: Automatic rapid exhaust method
• Cuff: Pressing belt system by geared motor, automatic operation
• Range of measurement: 0~300 mmHg(Pressure), 30~240 bpm(Pulse), 17~42 cm(Arm circumference)
• Degree of precision: Pressure ± 3 mmHg, pulse within ± 2%
• Measurement results: Systolic blood pressure, diastolic blood pressure, pulse rate, pulse pressure, mean blood pressure, rate pressure product
• Measurement time: Approx. 30 seconds on average (20-50 seconds depending on the pulse and blood pressure value)
• Pressurization time: 10 seconds
• Minimum scale unit: 1 mmHg

Functional Specifications

• Display method (Screen type): 7-Segment LED
• Display contents: Measurement guide, elbow detection, measurement result value, irregular blood pressure signal detection, and time
• Human body detection sensor: A sensor to detect human presence in front of device
• Moving elbow sensor: Equipped with a fluid structure for the accurate elbow detection (Patent registered)
• Moving cuff: Equipped with a fluid structure to induce accurate measurement posture
• Result Sheets: Selectable for measurement values, graph, common sense for blood pressure, or correct posture guide
• Error display: Outputting error message on Results Sheets and display screen
• Checking the number of measurements: The number of measurements per day, the total number of cumulative measurements
• Voice guidance: Guiding the blood pressure measurement and the result after measurement
• Background music: Playing background music when adjusting volume
• Printer: High-speed thermal printer with the built-in automatic cutter (width: 2.5-inch)
• Start/Stop button: Emergency exit button Two Start/Stop buttons in front and rear bottom sides
• Emergency exit button: Emergency exit button in front bottom side
• Safety mechanism:
• Quick cuff release and exhaust by pressing the Start/Stop button
• Automatically release and exhaust the cuff when the air pressure exceeds 300 mmHg
• Quick cuff release and exhaust by pressing the Emergency exit button (The dual safety mechanism enables the cuff to release and exhaust regardless of the central controller when the Emergency exit button is pressed.)
• External interface: RS232C (USB compatible when USB dedicated cable is used)

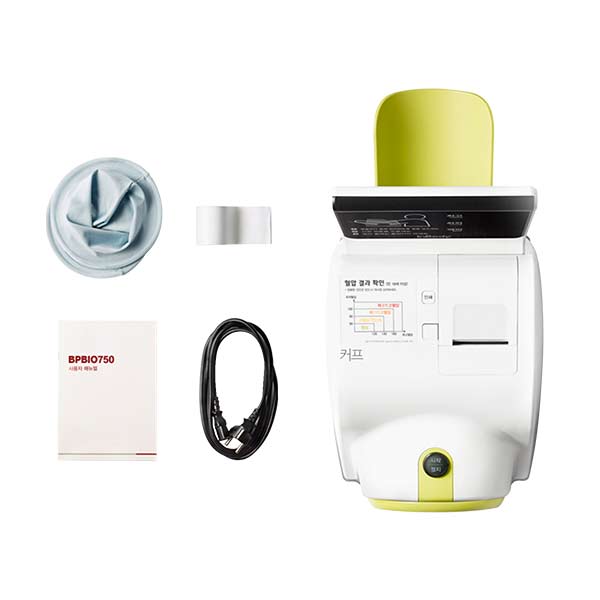

• Accessories: Dedicated desk, height-adjustable dedicated chair

Other Specifications

• Power Source AC 100-240V, 50 / 60Hz, 3.6VA
• Dimensions 299 (W) x 547 (D) x 485 (H) mm
• Weight 7.1 kg (Package weight: Approx. 11.3 kg)

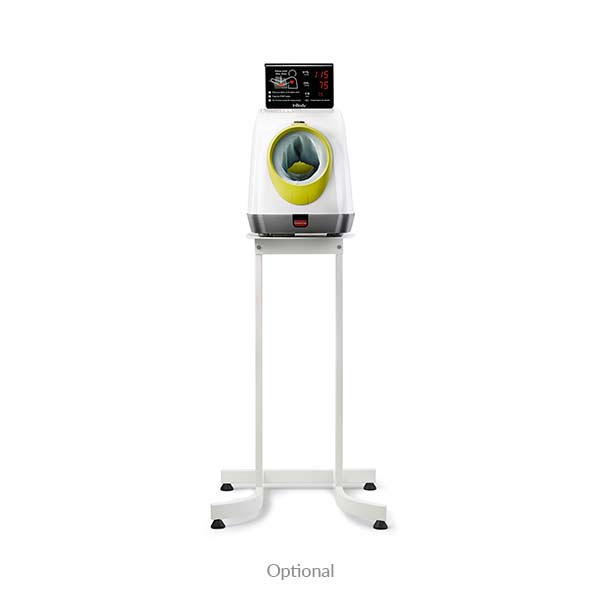

• Optional Device Desk: Approx. 12.0 kg, Chair: Approx. 5.3 kg
• Operating 10~40℃, 30~75%RH, 70~106 kPa
• Storage -10~70℃, 10~80%RH, 50~106 kPa (No Condensation)
