BPBIO320_Blue

BPBIO enables maintenance of health and lifestyle by allowing quick, easy and comfortably blood pressure measurement.

Key Specifications

• Measurement Method: Oscillometric
• Pressurizing Method: Automatic pressurization by pressure controller micro pump
• Depressurizing Method: Exhaust by micro valve
• Cuff: Pressurizing belt method by gear motor, Automatic operation
• Measurement Range: 0~300mm Hg(Pressure), 30~240 bpm(Pulse)
• Accuracy: ± 2mm Hg(Pressure), ±1.5%(Pulse)
• Measurement Results: Systolic Blood Pressure, Diastolic Blood Pressure, Pulse Rate
• Measurement Duration: Average 30 seconds (20 ~ 50 seconds depending on the pulse rate or blood pressure)
• Pressurizing Time: About 10 seconds
• Display Unit: 1mm Hg

Function Specifications

• Display Type: 7-Segment LED(Systolic, Diastolic, Time, Pulse)
• Types of Results: Sheets Results sheet value 3 line express print / Select graph print option
• Database: Can save up to 1,000,000 results
• Energy Saving: Automatically converts to energy saving mode 2 minutes after the last measurement is taken
• Dual Safety System: [START/STOP] button: the cuff will become loose and deflate * If the air pressure surpasses 300mmHg, the cuff will automatically deflate and loosen. [EMERGENCY] button: the cuff will become loose for deflation regardless of the main controller.
• Voice Guidance: Provides audible indication for test in progress, test complete, and successfully saved settings changes.
• Volume Controller: Volume can be controlled by volume controller
• Printer: High-speed thermal printer with automatic cutter (2.5 inches wide) Etc. Antitheft hole, CAL(Used for connecting to a mercury sphygmomanometer for pressure value adjustment)
• External Interface: RS232C(USB compatibility when using USB cable)

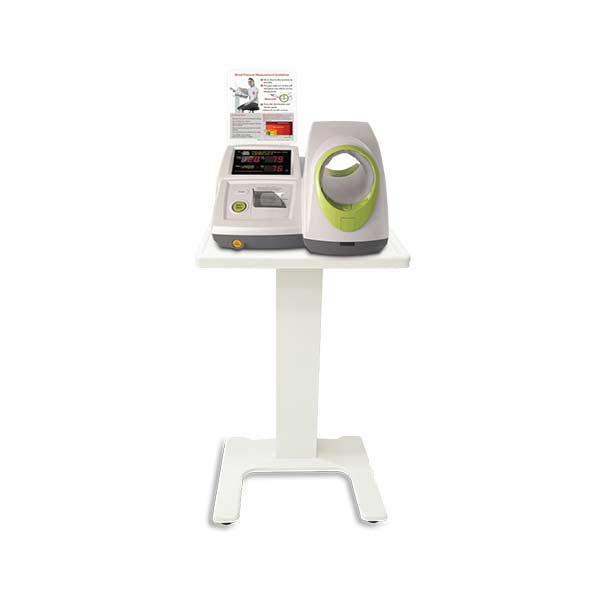

• Option: Personal desk, Height controllable chair

Other Specifications

• Power Source: AC 100~240V, 50/60Hz
• Power Consumption: 30VA
• Dimension:

489(W) × 450(L) × 284(H): mm

19.3(W) × 17.7(L) × 11.2(H): inch

• Weight: 9kg(19.8lbs)
• Operation Environment: 10 ~ 40°C(50 ~ 104°F), 30 ~ 75%RH, 70 ~ 106kPa
• Storage Environment: -10 ~ 70°C(14 ~ 158°F), 10 ~ 80%RH, 50 ~ 106kPa(No condensation)
